RS1706 Insulated Shaft Rotary Route Switch

RS1706 Insulated Shaft Rotary Route Switch

  • Series:
  • Format:See the following profile
  • Specifications

    Switch model:

    RS1706 series

    Applications:

    Microwave oven, washing machine and other white household

    appliances, can also be used in multimedia audio/power amplifier,

    medical equipment.


    Product Features:

    13 positions available with clear sense of clicks;

    Available in various shaft options;

    Functions:

    The main functions are function switching, speed control,

    temperature adjustment and so on.

    Main Specifications:

    Dimensions: 17mm
    Rated power: DC16V 0.3A
    Number of positions: 13
    Contact resistance: 50mΩ Max
    Operating temperature: -10℃ ~70℃
    Operating life: 50,000 cycles Min

    RS1706 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Rotational torque: 100~400gf.cm
    2. Step angle: 15°±3°

    TWO、ELECTRICAL CHARACTERISTIC

    1. Contact resistance: 50mΩ Max
    2. Power rating:  DC16V  0.3A
    3. Number of detent: 13
    4. Insulation resistance: 100M? 1 Minute at  DC 100V
    5. Dielectric voltage: 1 Minute at  AC 100V

    THREE、ENDURANCE CHARACTERISTIC
    1. Rotational Life: 50,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

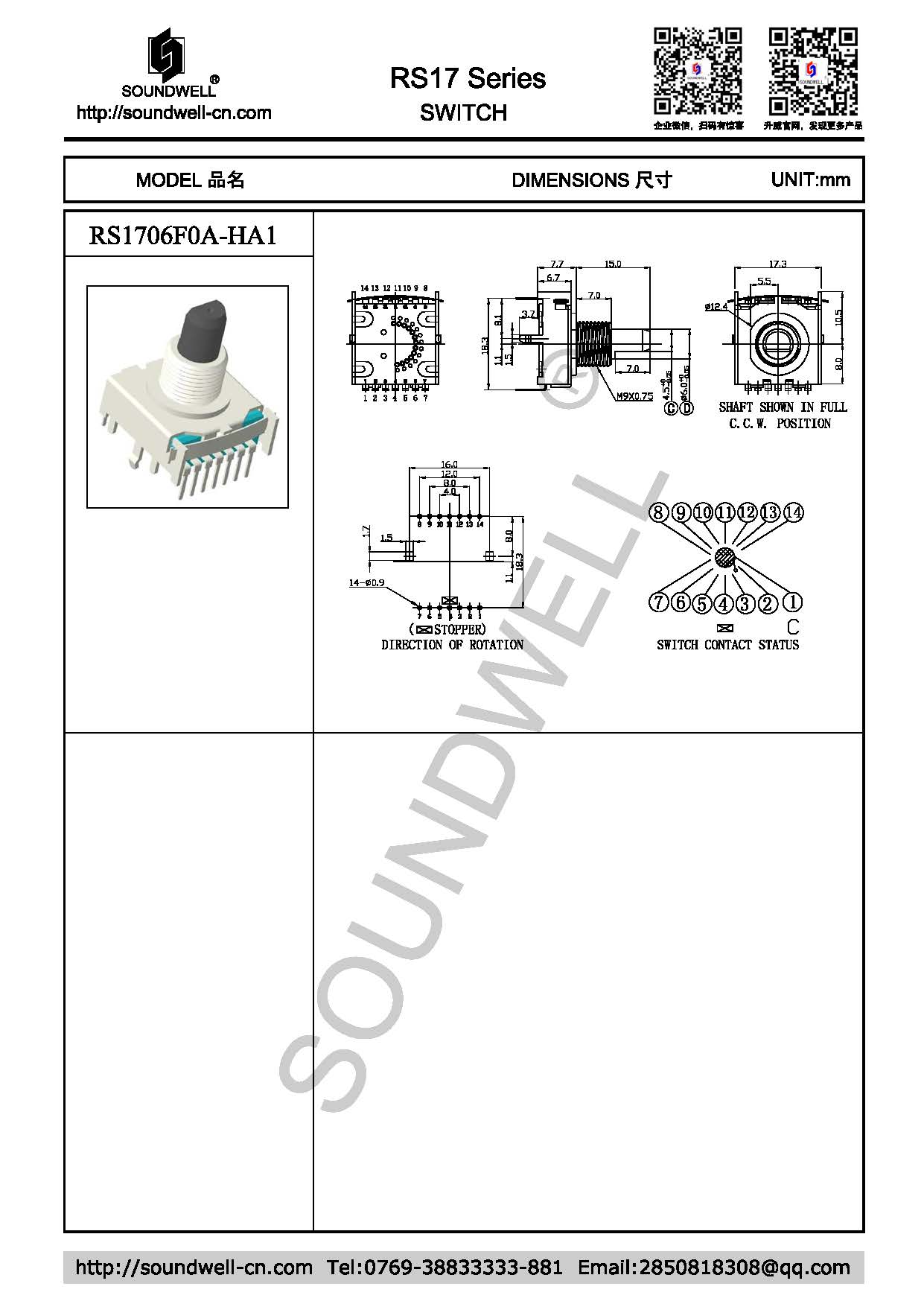

    /uploads/images/RS1706-1.jpg
