TS06 Tactile Switch

TS06 Tactile Switch

  • Series:
  • Format:See the following profile
  • Specifications

     switch model: TS06 series
    Name:

    TS06 Tactile Switch

    Main Specifications: Rated voltage: DC 15V
    Maximum rated current: 20mA
    Switch travel: 0.7±0.15mm
    Push operating force: 380±45 gf
    Operating temperature: -40℃ ~95℃
    Operating life: 200,000 cycles Min
    Product Features:

    Small size with good operating feel;
    Avaliable in IP6X protection level;
    Applicable for SMT reflow soldering;

    Applications:

    Automotive control panel and other household appliances, related

    electronic equipment.

    TS06 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Push operating force: 380±45 gf
    2. Switch travel: 0.7±0.15mm

    TWO、ELECTRICAL CHARACTERISTIC

    1. Contact resistance: 500mΩ Max
    2. Rated voltage: DC15V
    3. Insulation resistance: 1M? 60s±5s at DC 500V
    4. Dielectric voltage: AC 500V 60s±5s

    THREE、ENDURANCE CHARACTERISTIC

    1. Rotational life: 200,000 cycles Min
    2. Protection level: IP6X

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

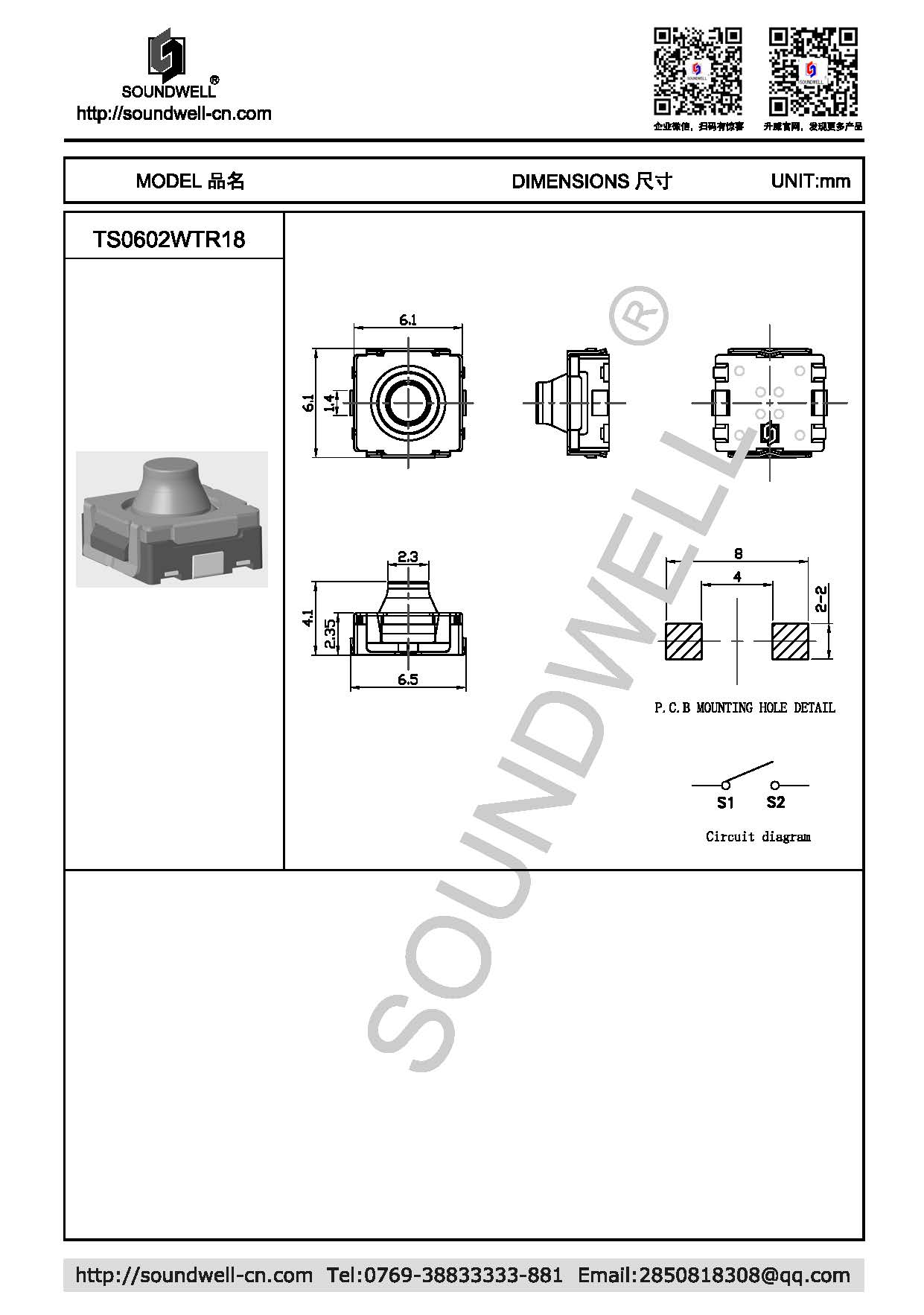

    /uploads/images/TS0602%20(1).jpg
