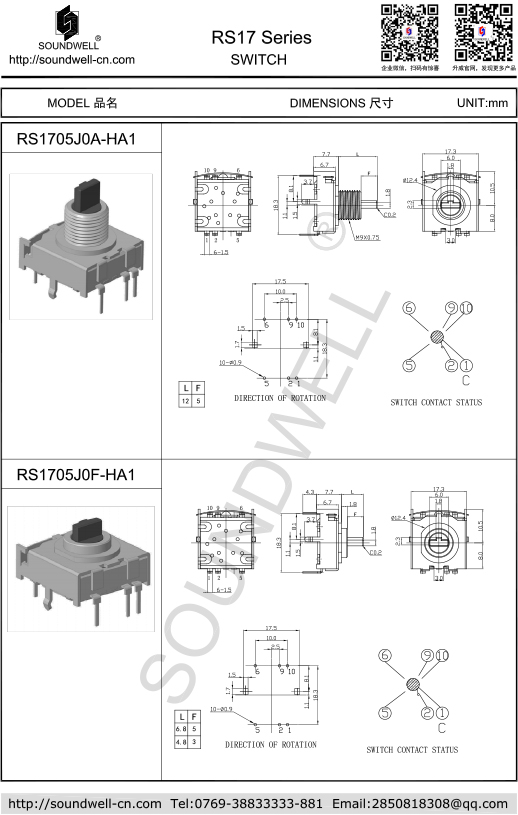

RS1705 Rotary Route Switch

RS1705 Rotary Route Switch

  • Series:
  • Format:See the following profile
  • Specifications

    Switch model:

    RS1705 series

    Applications:

    Home appliances such as micro-wave ovens, washing machines, audio devices, health care systems or other electronic products;


    Product Features:

    5 positions available with clear sense of clicks;

    Available in various shaft options;

    Functions:

    The main functions are function switching, speed adjustment, temperature adjustment and so on.

    Main Specifications:

    Dimensions: 17mm

    Rated power: DC 16V  0.3A

    Contact resistance: 100mΩ Max

    Number of positions: 5

    Operating temperature: -10℃ ~70℃

    Rotational life: 10,000 cycles Min

    RS1705 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Rotational Torque: 100~400gf.cm

    2. Number of detent: 5

    3. Step angle: 72°±3°

    4. Total rotational angle: 360°

    TWO、ELECTRICAL CHARACTERISTIC
    1. Contact Resistance: 100mΩ Max

    2. Power Rating: DC16V  0.3A

    3. Insulation Resistance: 100MΩ 1 Minute at DC 100V

    4. Dielectric Voltage: 1 Minute at AC 100V

    THREE、ENDURANCE CHARACTERISTIC
    1、Rotational Life: 10,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
