RJ26 4-direction lateral switch

RJ26 4-direction lateral switch

  • Series:
  • Format:See the following profile
  • Specifications

    Switch model:

    RJ26 series

    Applications:

    Car seats, game consoles.


    Product Features:

    4-direction lateral switches with no pressing function;

    Available in two terminals (NO) or three terminals (NC and NO) with each switch;

    Good operation feel with stable performance;

    Wide application field and high endurance.

    Main Specifications:

    Rated power: DC24V  10A;

    Contact resistance: 30mΩ

    Operating force: 650±200gf

    Electrical contact travel: 1.2±0.3mm

    Insulation resistance: 100MΩ

    Dielectric voltage: AC500V 10mA

    Operating temperature: -40℃~85℃;

    Operating life: 25,000 cycles Min

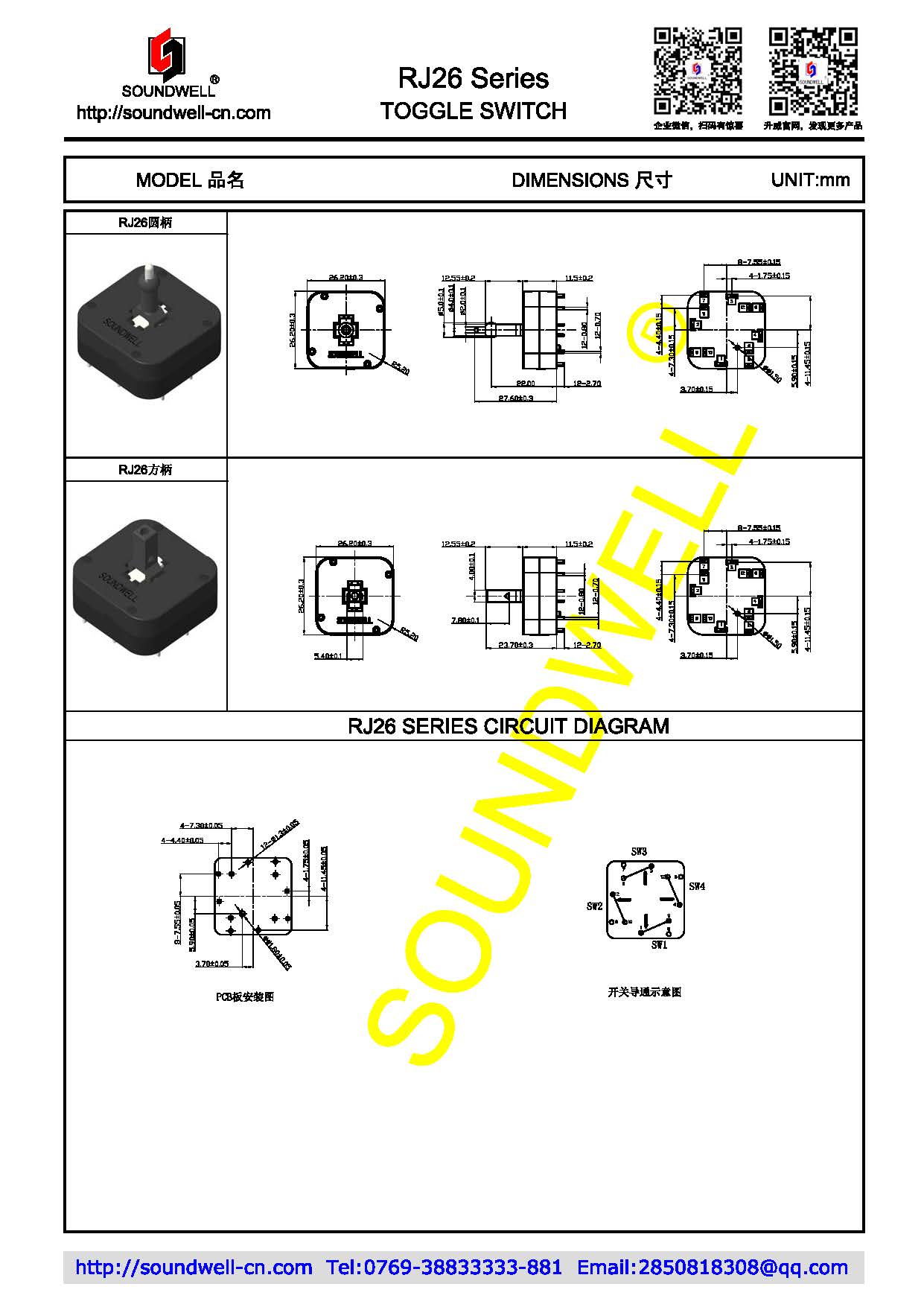

    RJ26 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Operating Force: 650±200gf

    2. Force Difference: 25% Max

    3. Electrical contact travel: 1.2±0.3mm

    4. Total Travel: 2.2mm Max

    5. Travel Difference: 0.3mm Min

    6. Shaft Strength: 10kg Min

    TWO、ELECTRICAL CHARACTERISTIC
    1. Contact resistance: 30mΩ Max

    2. Insulation resistance: 100MΩ

    3. Dielectric Voltage: AC 500V 10mA

    THREE、ENDURANCE CHARACTERISTIC

    1. Operating Life: 25,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
