MS14 Slide Switch

MS14 Slide Switch

  • Series:
  • Format:See the following profile
  • Specifications

    Switch model:

    MS14 series

    Applications:

    Car sunroof switch, light switch and other related electronic equipment


    Product Features:

    Long life with high precision.

    Functions:

    It mainly plays a role in switching functions such as sunroof switch and light switch

    Main Specifications:

    Travel: 9mm

    Rated current: 50mA

    Rated voltage: DC 5V~14V

    Operating temperature: -40℃~90℃

    Operating life: 100,000 Min

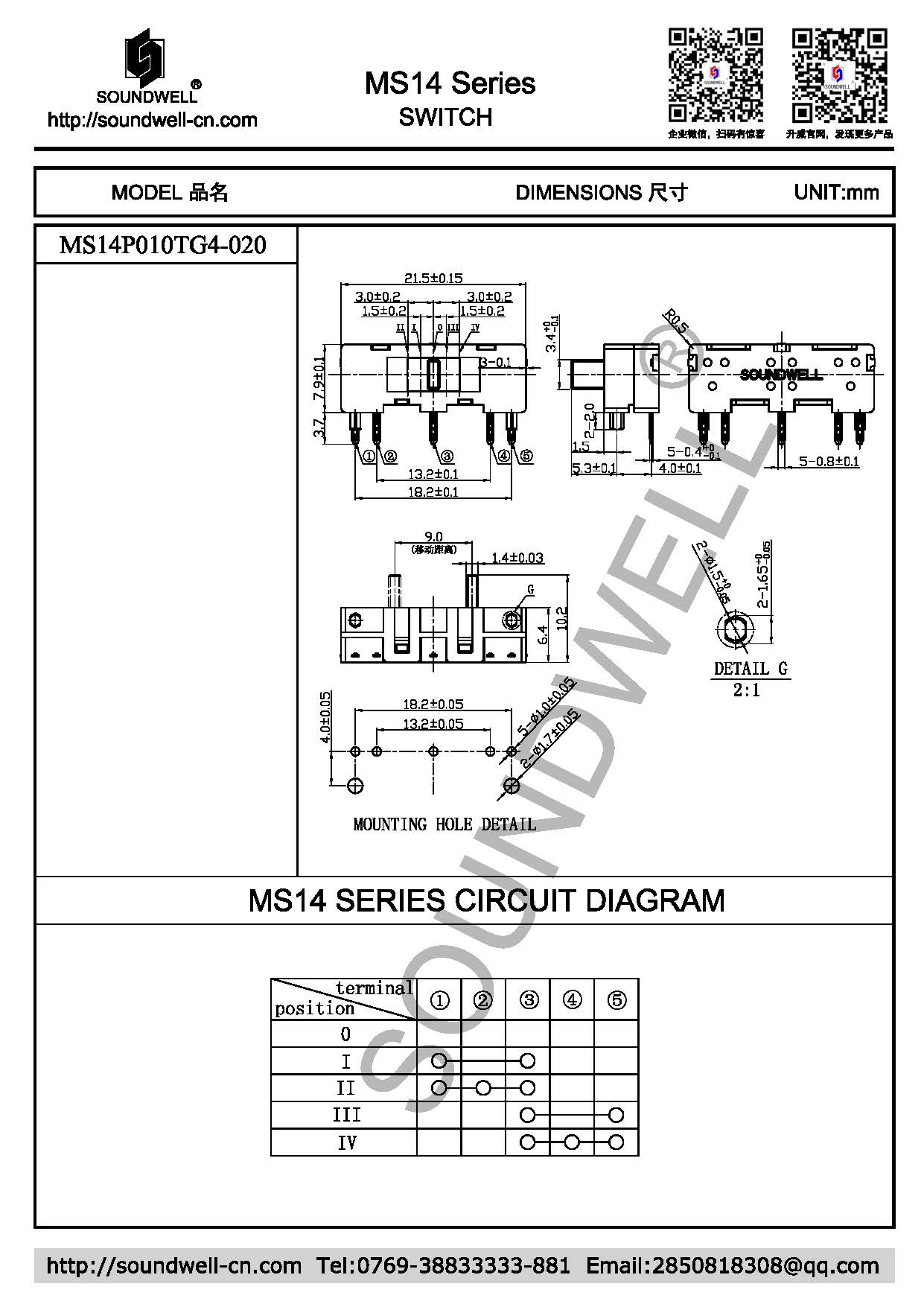

    MS14 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Sliding torque: 50gf Max

    2. Slide travel: 9mm

    3. Lever Stop Strength: ≥3Kgf

    4. Lever push-pull strength: ≥2Kgf

    TWO、ELECTRICAL CHARACTERISTIC

    1. Contact Resistance: 100mΩ Max

    2. Maximum operating current: 50mA

    3. Rated voltage: DC 5V~14V

    4. Dielectric Voltage: AC 500V (50~60Hz) 1 minute

    5. Insulation resistance: 100M? 60s±5s at DC 250V

    THREE、ENDURANCE CHARACTERISTIC

    1. Operating Life: 100,000 Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
